Designed to increase productivity

Create walls, curtain walls, doors, windows, staircases, and self-generated roofs with few mouse clicks

Architect-friendly workflow. Intuitive dialog boxes. 3D AEC is included for free in progeCAD. The automated building tool for architectural design, which increases productivity in house and interior design and remodelling.

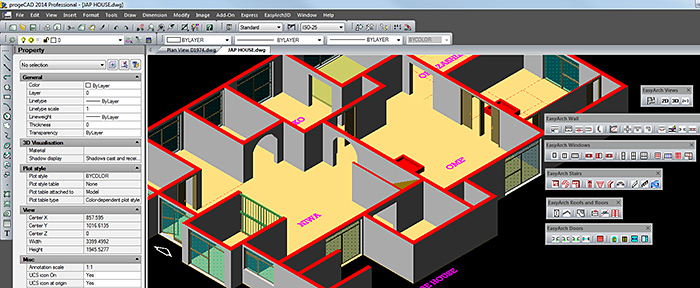

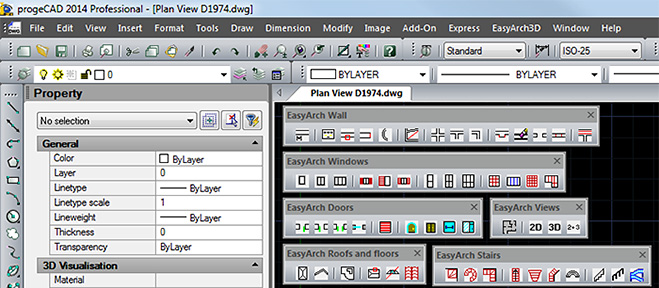

Compatible with AutoCAD^®AEC Objects. The new AEC package allows you to draw 3D architectural elements with a two-dimensional view in plan and takes advantage of a whole series of new Architecture style commands. The drawn entities are now specific AEC elements editable and configurable via the Styles management. By default it replaces our previous EasyArch architectural plugin which still remains available and can be activated with the variable AECMODE.

Main Features:

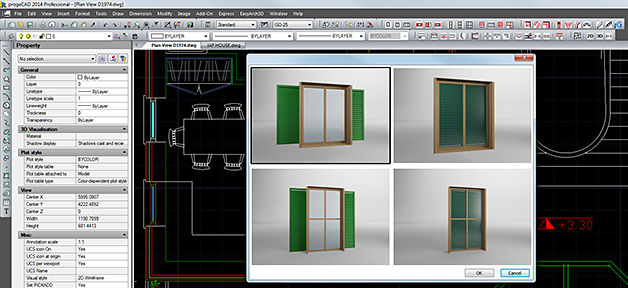

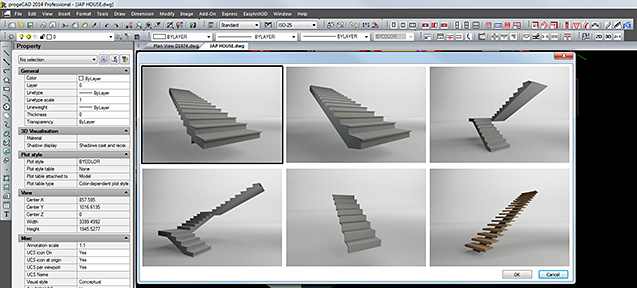

• Draw walls, doors, curtain walls, windows, stairs and railings
• Draw slabs, roofs, or roof slabs
• Walls and Slabs can be created by direct conversion of 2D entities
• Multi-level manager to assign levels to AEC entities
• AEC Styles manager: manage & customize AEC Styles for Walls, Doors, Windows, Curtain Walls and Curtain Wall Units, stairs and railings, and slabs
• AEC Family – imports AEC objects style from external fam or dwg files
