Creating extruded solids or surfaces
You can create three-dimensional solids or surfaces by extruding closed entities, such as polylines, polygons, circles, ellipses, closed splines, donuts, and regions. You can extrude the entity along a selected path, or you can specify its height and taper angle.
To create an extruded solid or surface
1 Do one of the following to choose Extrude () ():
On the ribbon, choose Draw 3D > Extrude (in Draw 3D Solids or in Surfaces).
On the menu, choose Draw > 3D Solids > Extrude or Draw > Surfaces > Extrude.
On the Draw 3D Solids or the Draw 3D Surfaces toolbar, click the Extrude tool.
Type extrude and then press Enter.
2 Select the entity to extrude.
If you want to create an extruded surface instead of a solid, choose Mode. If an open profile is selected, a surface is created even if Mode is set to Solid.
3 Select the extrusion path, or specify the height.
|
||

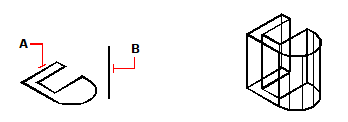

Select the entity to extrude (A) and the extrusion path (B). |
|
The resulting extruded |
