AreaText

Ribbon: Express Tools > Text > AreaText ()

Menu: Express > Text > AreaText

Toolbar: Express > Text > AreaText

Keyboard: AREATEXT

This function allows select an area through profile definition, and creates a text that indicates the Area value.

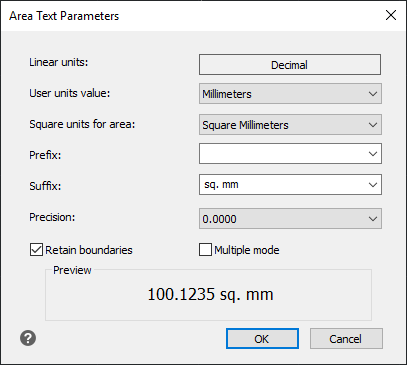

DIALOG FIELDS:

Linear units: Not editable field, that indicates the drawing units configuration (Decimal or Architectural).

User units value: Here you can select the unit type used in your drawing.

Square units for area: Here you can choose the square units you prefer for the Area Value.

Prefix: Allows to type string to add as prefix.

Suffix: This field is automatically filled with a suffix coherent to the "Square units for area". It's possible to customize this value simply by typing the string you want.

Precision: Allows to choose the decimals number.

OPTIONS:

Retain boundaries: Default value ON. Allows to decide if the drawn boundaries is maintained or not.

Multiple mode: Default value OFF. Allows to activate the multiple insertion mode.
