Fade Objects

progeCAD can fade objects on Locked layer, into Xref, during Refedit and into Underlay objects.

Fade options:

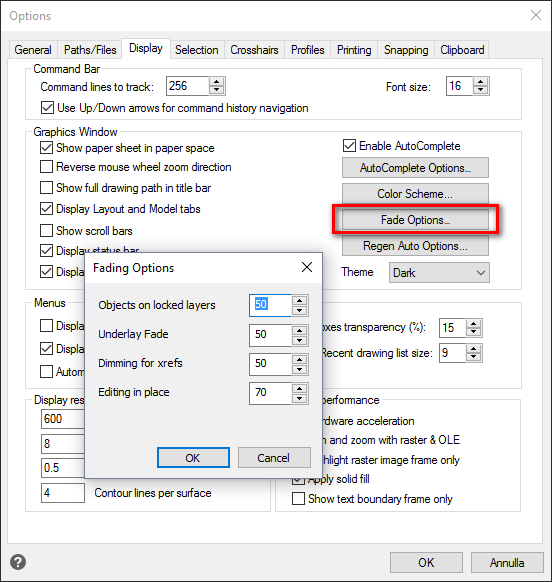

The fade configurations are in the following dialog: Tools > Options > Display > Fade Options...

• Objects on locked layers: To fade objects on locked layers (default value: 50).
• Underlay fade: To fade underlay entities (default value: 50).
• Dimming for xref: To fade objects contained into xref (default value: 50).
• Editing in place: To fade external objects during Refedit operation (default value: 70).

NOTE: These configurations don't modify the printed colors, but these are applied only to the visualization.

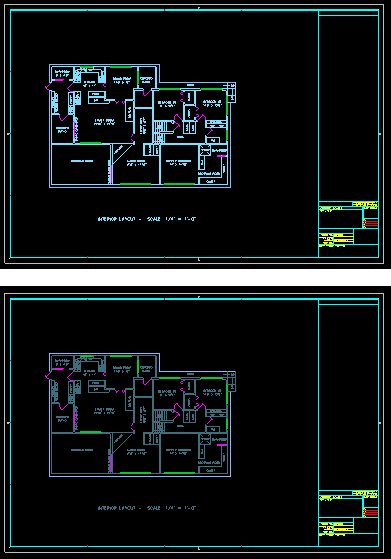

Example:
